Fully Automated Operable Wall: Technology Meets Design

OverVIEW

Discover our automatic movable partitions, harnessing state-of-the-art German technology. These partitions, also referred to as movable partition walls, movable panels, or mobile screens, boast ease of installation and reusability, embodying an environmentally conscious and industrially produced solution with fireproof capabilities.

Functionally versatile, these partitions offer a dynamic method for dividing interior spaces, enabling large areas to be effectively segmented into smaller sections. Whether for residential or commercial purposes, these partitions adapt to diverse spatial needs within a structure. Moreover, users have the flexibility to select between electric and manual options, ensuring versatility in both installation and operation.

typical SPECIFICATIONS

Our 100 series fully automated acoustic operable wall offer unparalleled speed and flexibility, transforming any space with the simple push of a button. Unlike manual systems, this innovative solution is powered by a smooth, quiet electric drive, eliminating the need for physical effort. The individual panels glide effortlessly into position, and the top and bottom seals automatically engage to create a superior acoustic barrier instantly.

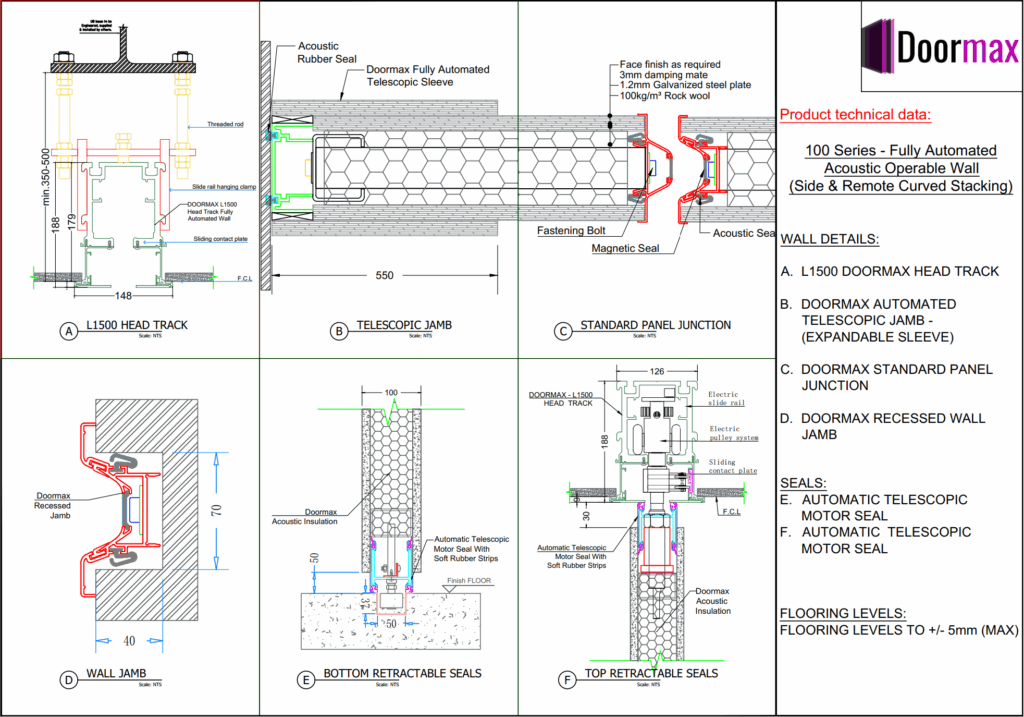

	100 Series Fully Automated Acoustic Operable Wall
Model	100 Series Doormax Fully Automatic Movable Partition

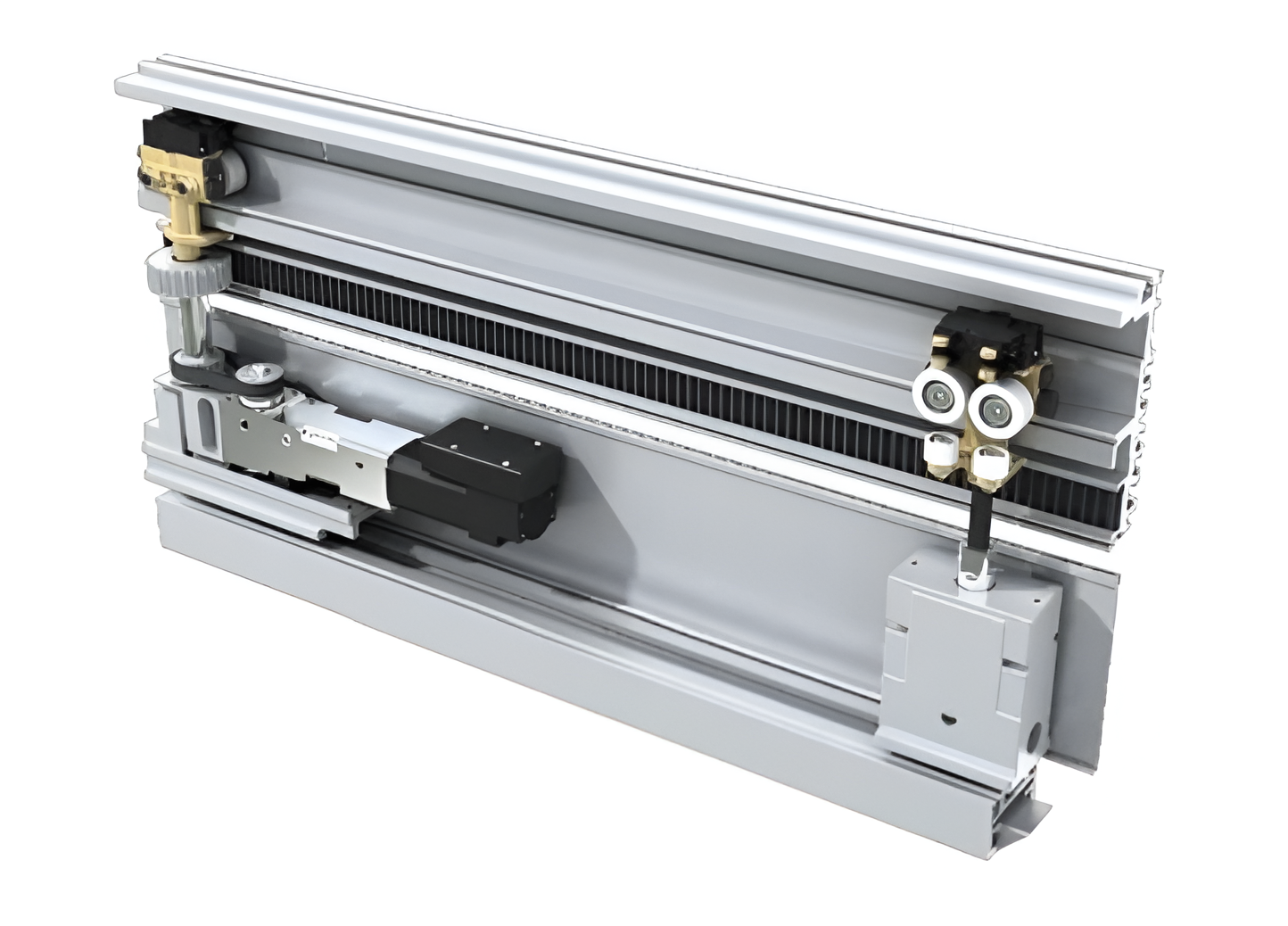

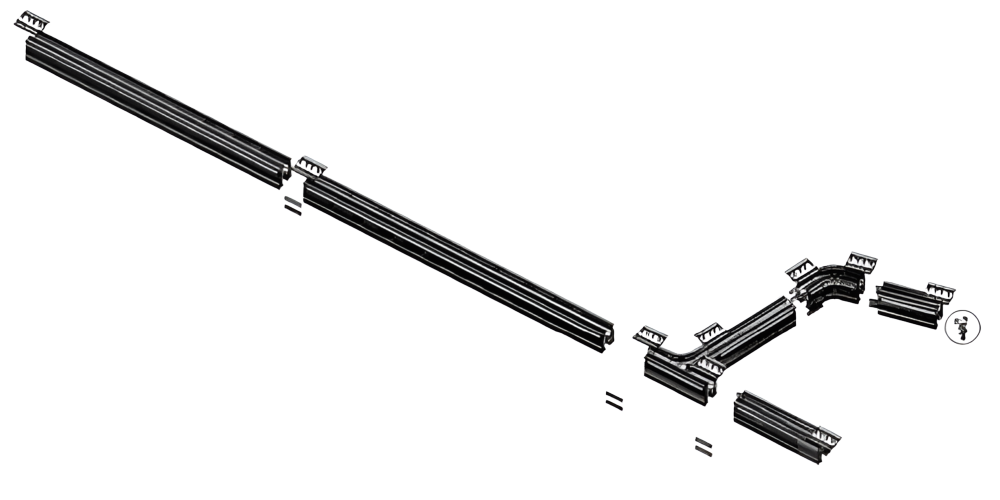

Track Type	L1500 Conductive Rail Sliding System

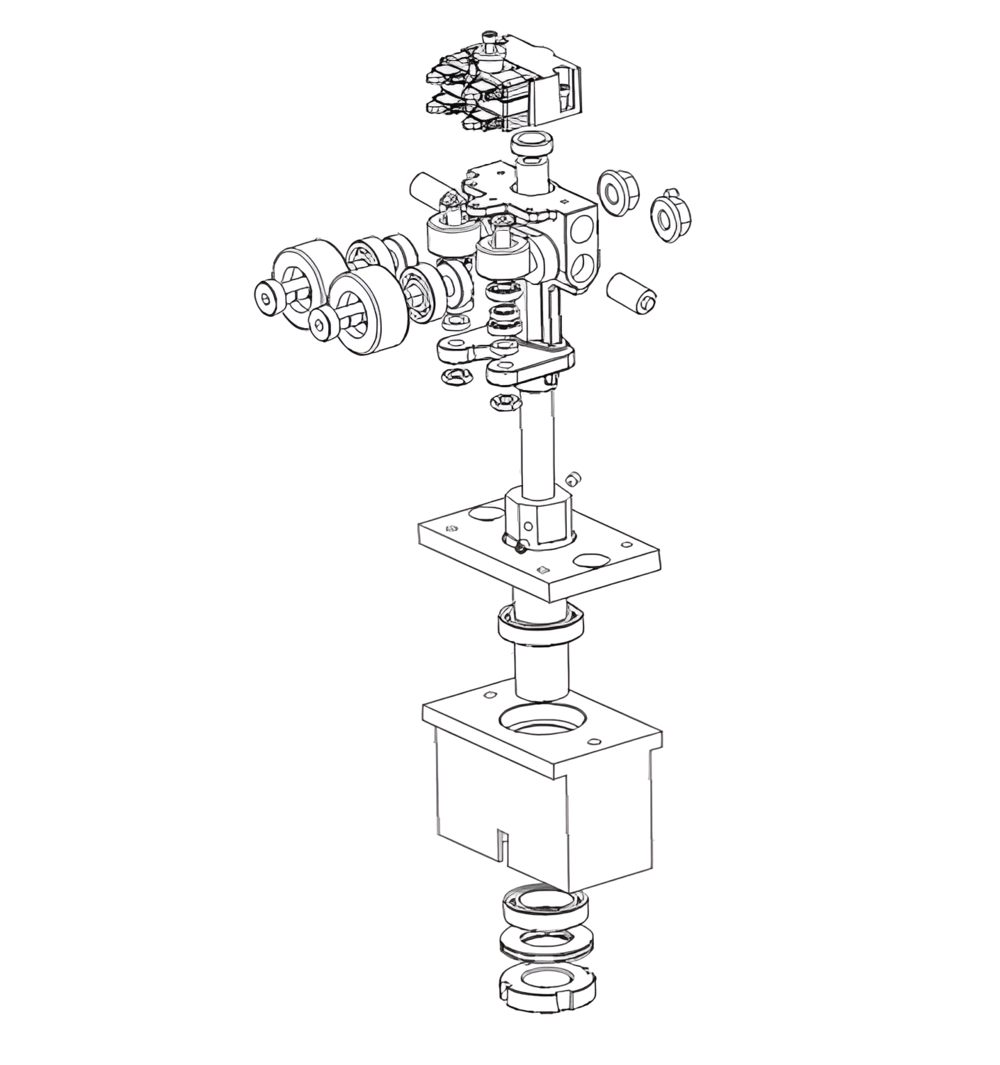

Roller	Automatic Guiding Mechanism With Automatically Preset Guidance

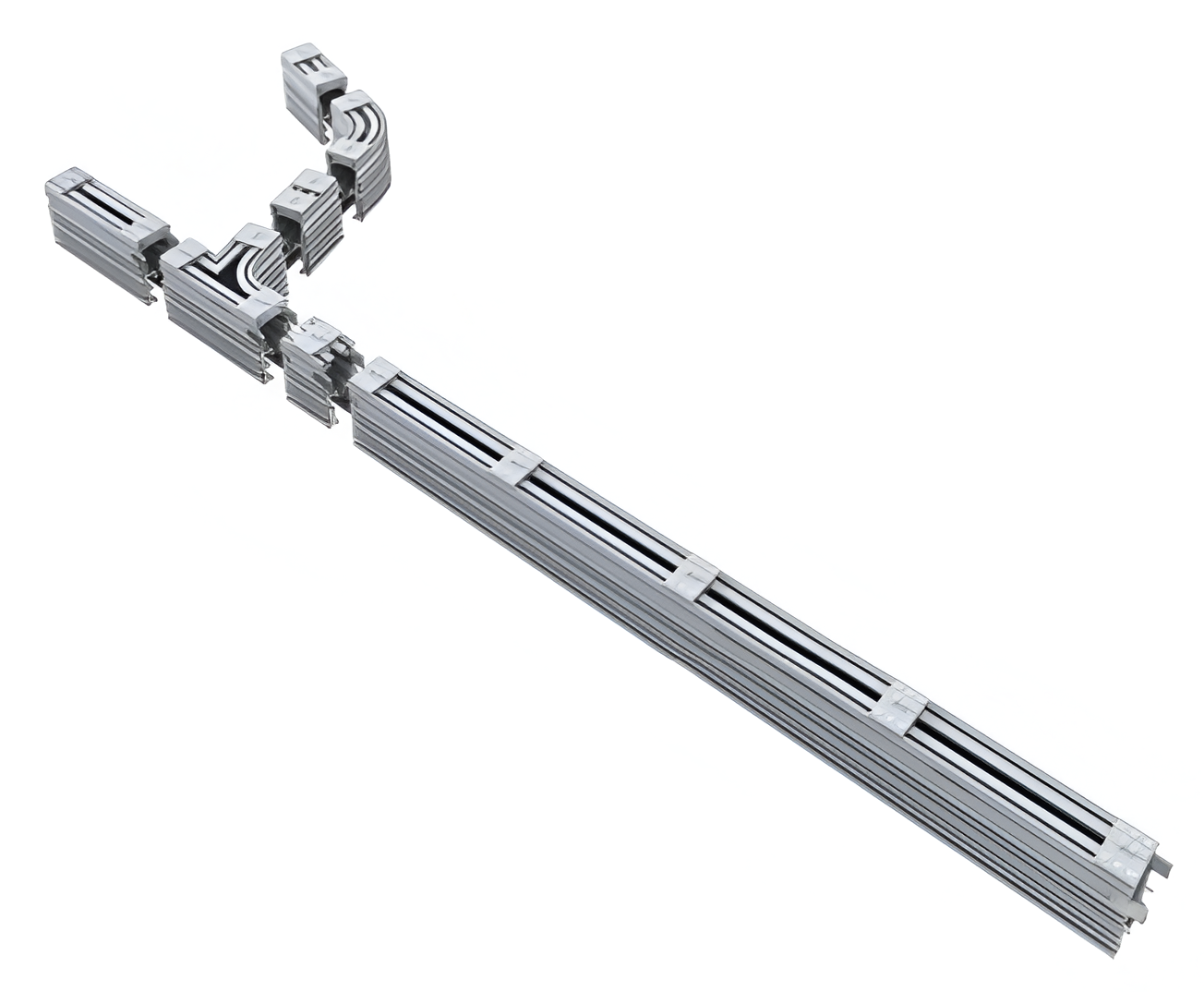

Track	Electric Partition Track System 6063-T6 Aluminium Alloy

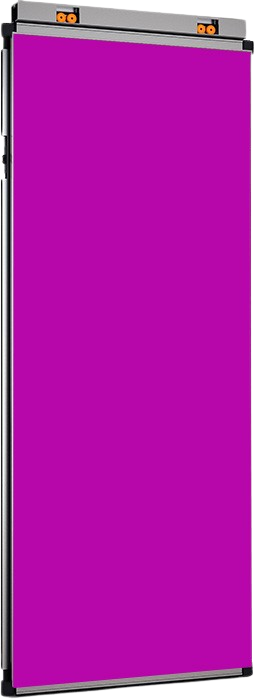

Panel Thickness	100mm

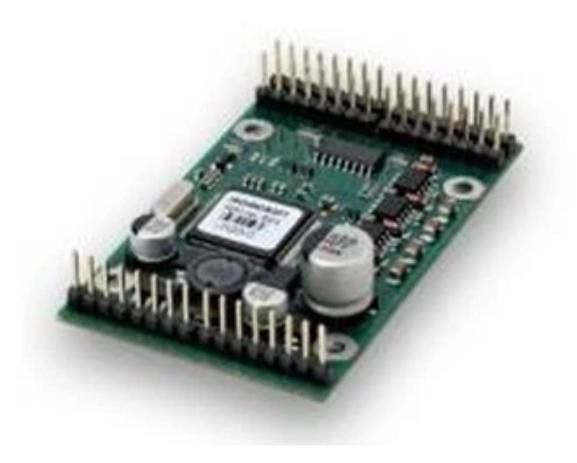

Panel Configuration	Equipped With a Built-In Controller, PLC Circuit and Extended DC Motors.
Top Seal	30mm Automatic Telescopic Motor Seal Support, With Soft Rubber Strips

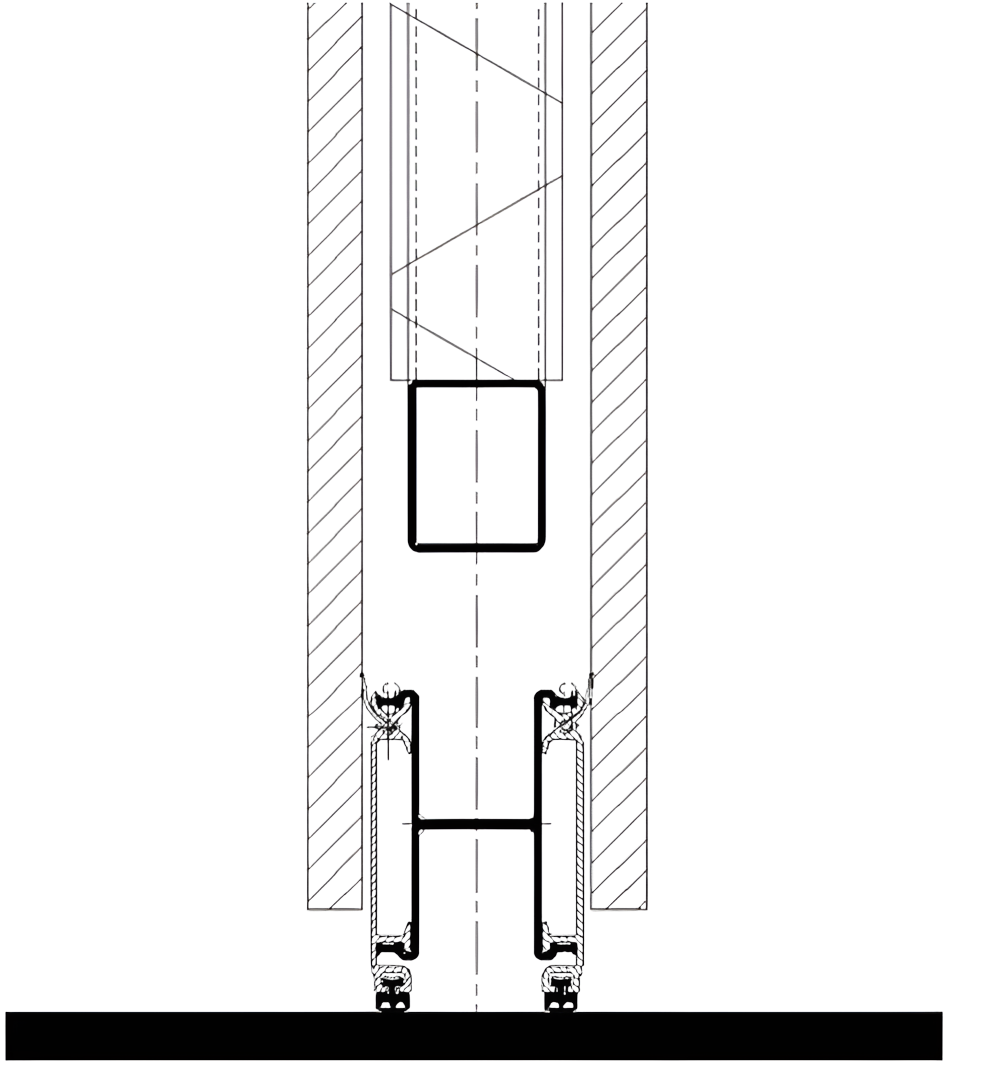

Bottom Seal	50mm Automatic Telescopic Motor Seal Support, With Soft Rubber Strips

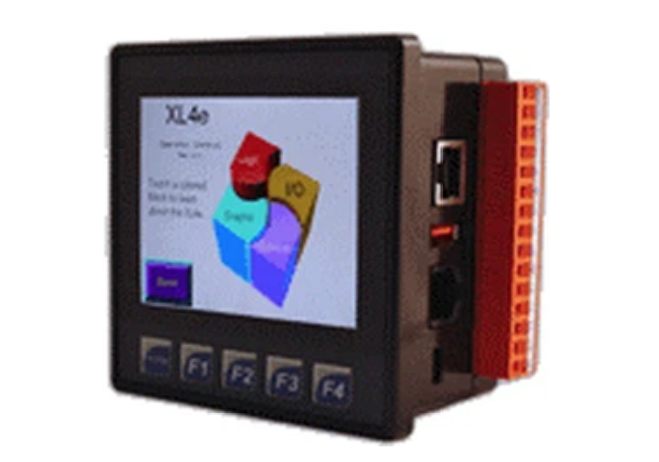

Controller	Panels are Programed and Conrolled by 10-Inche Touch Screen.
Locking	Automatic
Infilled Materials	100kg/m³ Rockwool
Soundproof Treament	Steel Sheet, Sound Dampening Mat, Acoustic Panel etc.
Base Board	9mm Plywood /MDF/HDF/HPL
Face Finish	Bare Board, Plywood, Melamine, Fabric, PU, HPL, Wood, Vinyl, Leather, Acoustic Panel, Autex etc. or Customized
STC	38-56 (dB)
Weight	Approx. 50kg/m²
Fire Retartdant	Optional
Applicable Height	2m to 20m
Passing door	InBuilt Pass Door
Monolithic Width Range	800 – 1500mm or Customized
Outdoor parking option	✓ In-Panel Door (Optional)
Acoustic comfort enhancement option	✓
Operating Speed Range	0.10 – 0.20 m/s or customized
Input/Output Voltage	85-264 Volts/24 Volts

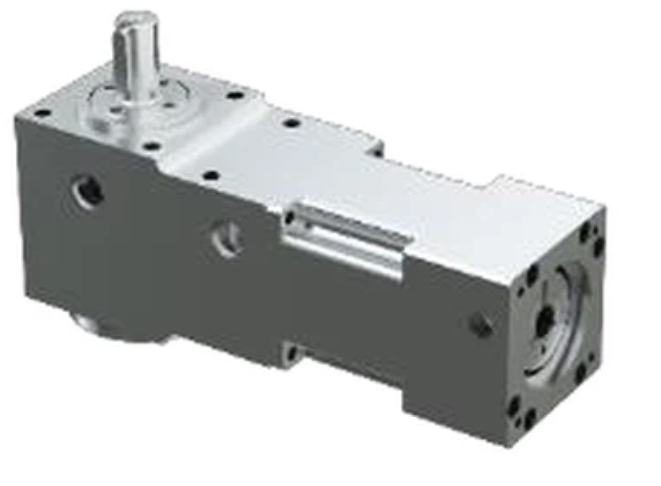

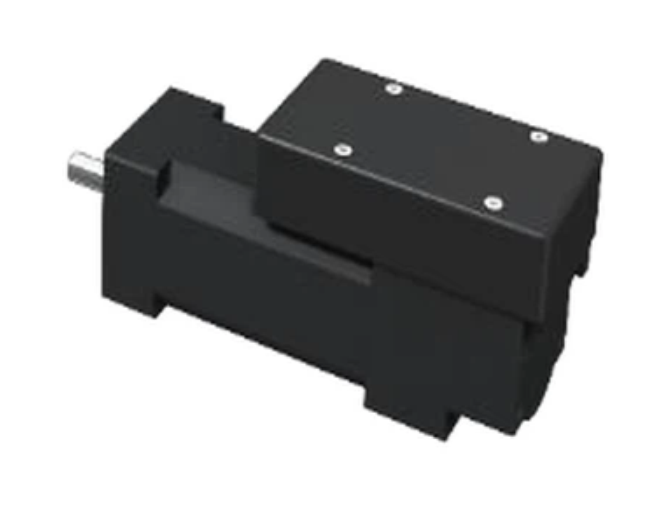

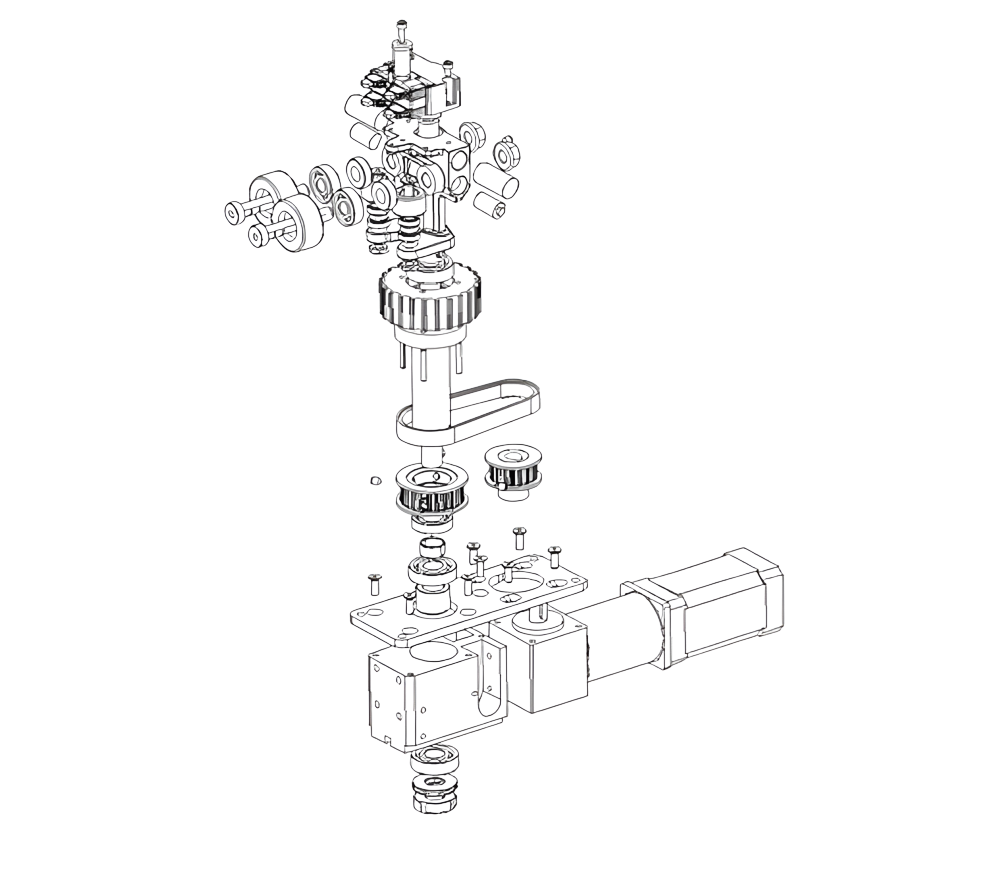

Introduction/Explanation Motor: Domestic servo motor with two-phase eight-wire type Speed: 0-1000 revolutions (3000 revolutions without load) Output torque: 12 Nm Driving load: Maximum vehicle weight – 750 kg Maximum panel width: 1600mm Reducer Planetary reducer, reduction ratio 1:58.5; Traveling speed: 0.1-0.15 meters per second; Input voltage:
100-260 volts AC; Operating voltage:
24V DC; Environmental temperature: -20 to +60degrees Celsius;

Electromechanical drive features powerful startup with Redundant safety sensors and advanced activation sensors for safety. Infrared sensor system, reverses the direction of the panel if any obstruction cuts across the invisible light beam.

Rollers made of specially designed composite materials such as nylon with bearing for smooth operation. Available with manual operation mode in case of emergency. Quick release disengaging mechanism enables changeover to manual operation in case of power failure. (manual operation under power cut-off).

Easy to operate through push button and remote control. Designed as total safety system with automatic hung sliding panels.

Technical Accessories
