Overview
Presenting our innovative semi-automatic movable partition, combining manual and electric features to meet diverse customer needs seamlessly. Incorporating conductive elements and signal transmission ensures automatic locking, while retractable seals at the top and bottom ensure outstanding sound insulation. With a generous thickness of up to 105 millimeters, it achieves an impressive sound insulation performance of 56 decibels.
Capable of accommodating heights of up to 20 meters, our semi-automatic partition distinguishes itself by offering an independent system for each panel. These distinctive attributes collectively provide a highly convenient and premium solution for efficient space division.
TYPICAL SPECIFICATIONS
The semi-automated operable wall, also known as a semi-automatic movable partition, is a flexible space-division system that combines manual panel movement with an automated sealing mechanism. Unlike fully manual systems that require a hand crank to lock panels in place, semi-automated walls use an electric motor to extend and retract the top and bottom acoustic seals.
| 100 Series Acoustic Operable Wall | |
|---|---|
|
Suspension |
Double |
|
Track Type |
L450 / L500 / L600 / L800 / L1000 / L2000 |
|
Roller |
DuPont POM Material / Steel
Roller With Safety Steel Wire |
|
Track Loadbearing / 2
Rollers |
L450:450kg / L500:500kg / L600:600kg / L800:800kg / L1000:1000kg / G2000:2000kg |
|
Panel Thickness |
105mm |
|
Panel
Configuration
|
– Outer frame: Aluminium
– Inner frame: 3.0mm Galvanizing C-Shape Steel + 1.2mm Galvanizing Square Steel Tube – Rockwool: 100kg/m³ – Board Thickness : 15mm & 18mm |
|
Vertical Seal |
Concave & Convex Profile With
40N Magnetic Strip and Rubber
Seal |
|
Retractable Seal |
Top & Bottom |
|
Mechanism |
Jack Lifting of Power 10KN |
|
Locking |
Clockwise Rolling |
|
Infilled
Materials |
100kg/m³ Rockwool |
|
Soundproof
Treament |
Steel Sheet, Sound Dampening Mat, Acoustic Panel etc. |
|
Base Board |
9mm Plywood
/MDF/HDF/HPL |
|
Face Finish |
Bare Board, Plywood, Melamine, Fabric, PU, HPL, Wood, Vinyl, Leather, Acoustic Panel, Autex etc. or Customized |
|
STC |
45-56 (dB) |
|
Weight |
38-60kg/m² |
|
Fire Retartdant |
Optional |
|
Applicable
Height |
2m to 20m |
|
Passing door |
Single & Double |
|
Password or Card Pass System |
✓ Telescopic / Expendable Panel |
|
Outdoor parking option |
✓ In-Panel Door (Optional) |
|
Acoustic comfort enhancement option |
✓ |
|
Acoustic barrier |
✓ |
|
Insulation Tapes |
✓ |

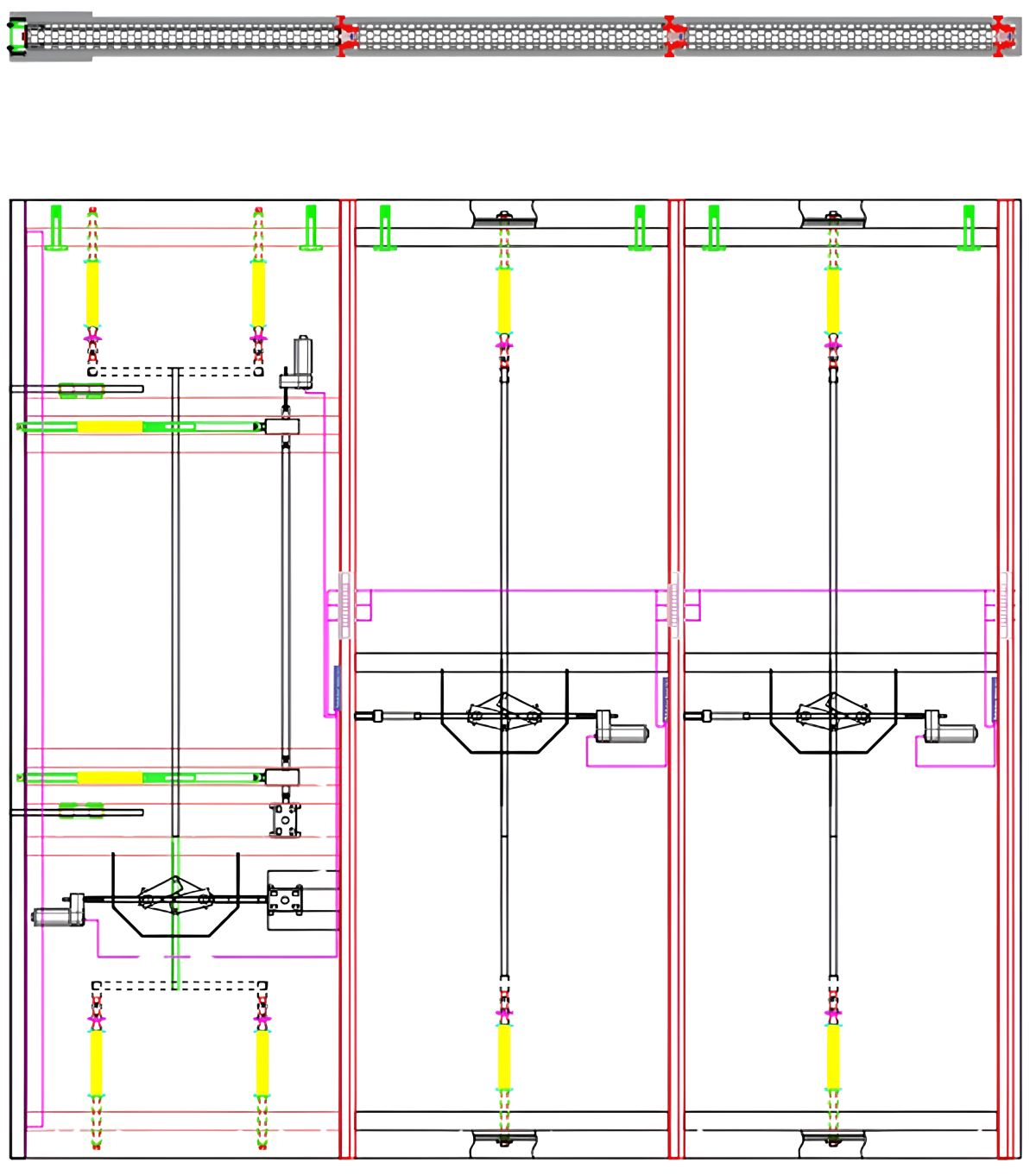

Technical Diagram

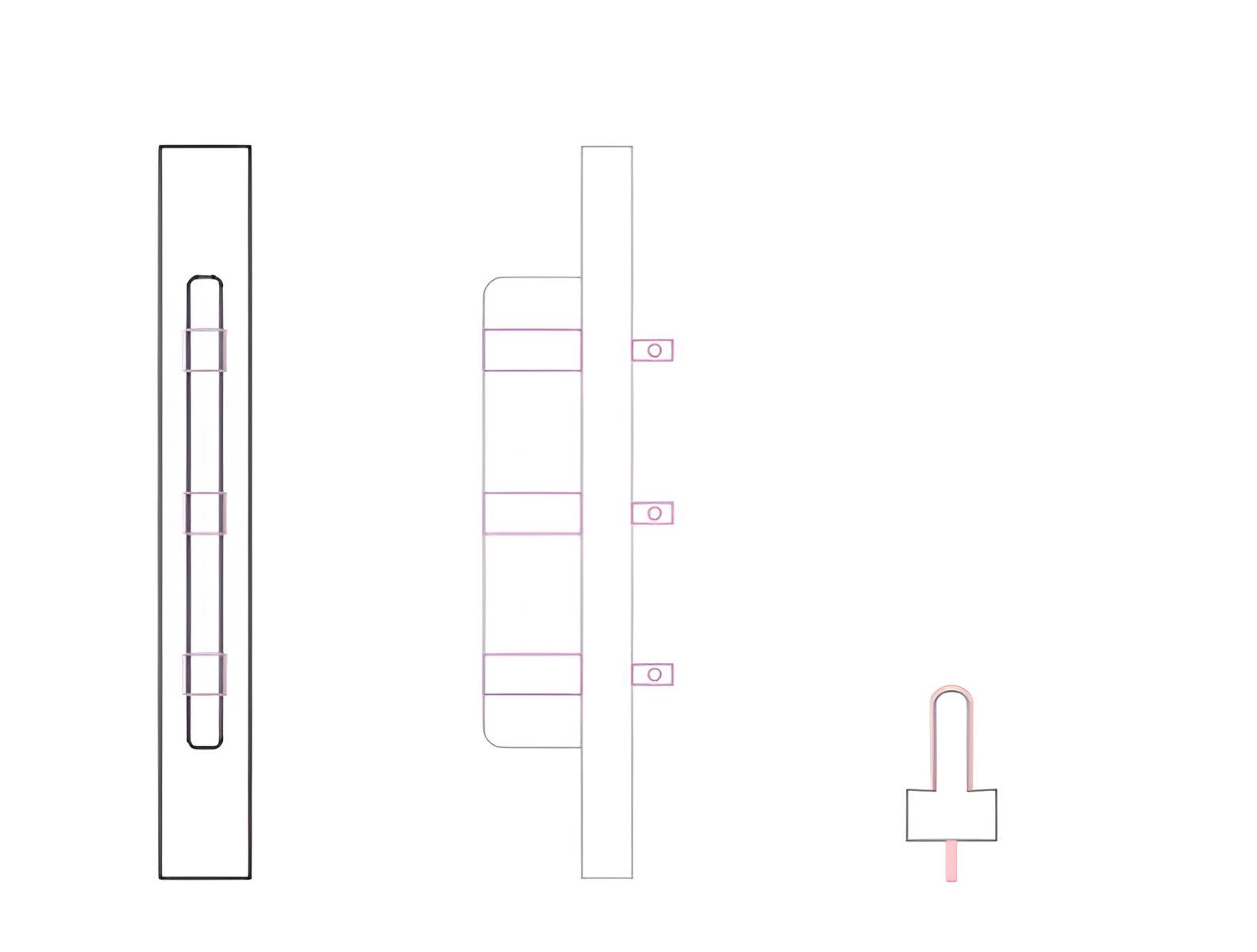

Cable Terminal (Convex)

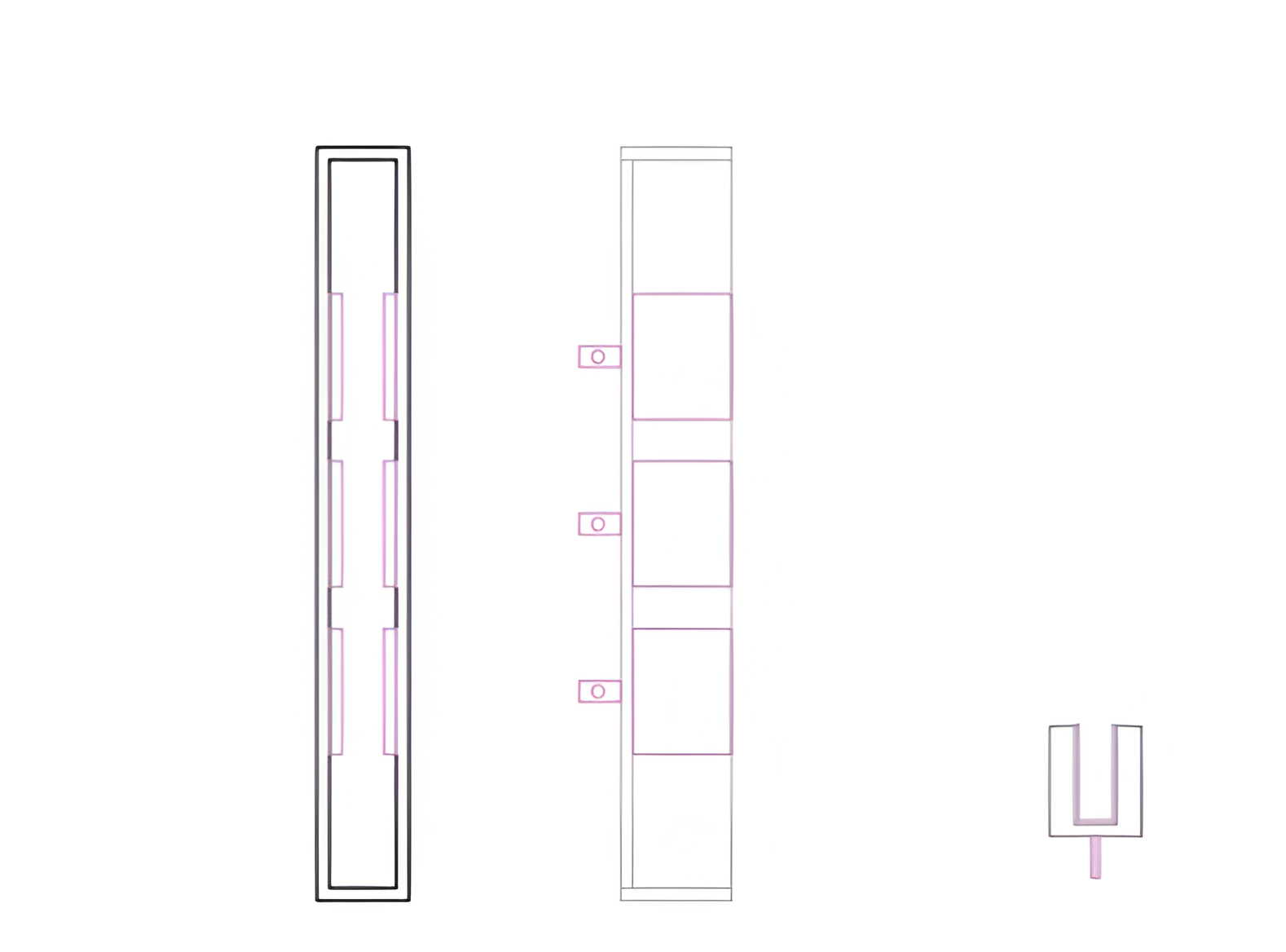

Cable Terminal (concave)
Electric Conductor Module
Telescopic Panel
Basic Panel
Semi Automatic Movable Partition

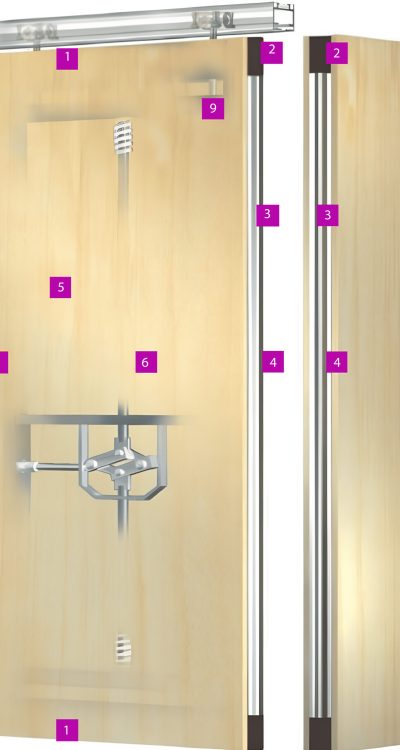

Advantages In Details
1. Horizontal seals
The principle of double-skin
construction is applied
consistently in the seal area in
order to ensure maximum
sound insulation. A spindle
mechanism extends the
spring-loaded, flexible doublechamber seals against
the floor and the ceiling
track. Any irregularities in
the flooring are offset by
spring-loaded double-cham-ber
seals. The contact
force of the sealing strips
does not place excessive
strain on screed floors,
but does ensure that the
Egood system is sufficiently stable to prevent the
panels moving.
2. Corner seals
Doormax resolves the technical issue of corner seals
with specially designed,
elastic corner pieces that
also reinforce the stability
and sound insulation
properties of the system
3. Vertical seals
All Doormax models have
flexible, vertical sealing
strips to ensure the best
possible seal for maximum
sound insulation. The strips
extend some distance
into the panels to ensure
positive interlock
4. Magnetic strip
The individual panels
are centred via the magnetic strips to guarantee
sound, positive locking
and sealing
5. Cover panels
The cover panels are
clipped on as freely oscillating bodies to ensure
optimum sound insulation
with minimum system
weight. The panels can be
replaced without removing
the elements. Their surfaces
can be coated or covered
with any conventional interior design material.
6. Sound insulation material
The various Doormax
models
can be fitted with additional insulation materials
according to the specified
acoustic requirements.
7. Operating handle
In manual systems, the
element sealing strips are
operated using a crank.
The crank has a captive
bayonet fitting to prevent
it from being pulled off.
The bayonet arrangement
is easy to disengage and
prevents crank slippage.
8. Frame
The frame is of torsionally
stiff steel and aluminium
construction. Transverse
forces will not, therefore,
cause deformation of the
frame. This, combined
with the panels mounted
in acoustically free suspension, means
elements are able to offer
both exceptional strength
and outstanding sound
insulation
9. Roller assemblies
The dampening track roller
assemblies prevent the
transmission of impact
forces and operating
noise, so protecting element, track and carrier.
Download brochure
Operable Wall Brochure
(Semi-Automated Operation)
Standard Stacking Configurations
Doormax accommodates three choices for stacking of panels to the side when opening:
Centre Stack
A straight track on a central trolley.
Side Stack
Single panels suspended from two carriers at the top corners; one corner will remain on the main track.
Remote Stack
Directional carriers allow panels to be stored in a cupboard or niche.
*Please note: for alternative stack arrangements, please contact a DOORMAX representative. We will be happy to assist you.
